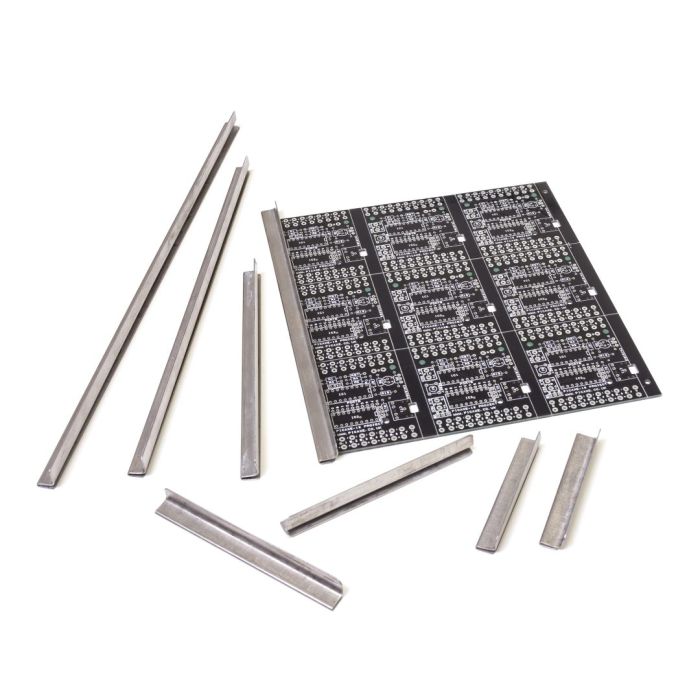

Titanium Wave Solder Strips
These titanium wave solder strips save time and money by preventing damage to PCBs during the wave solder process. Simply push the plough onto the board to eliminate sagging during the wave soldering process. Sizes now up to 400mm available.
- Sizes from 50mm to 400mm long
- Manufactured for 1.6mm PCB thickness
- Keeps the board level while travelling over the wave
Titanium: High-grade material
Titanium Thickness: 0.7mm
Typical Dimensions: Height:13mm, Depth: 10mm, Length: variable
PCB Thickness: Formed for 1.60mm PCB material (0.80mm and 2.4mm available on request)
Standard Delivery
Usual shipping within 2-5 daysNext Day
Service available. Cut-off by 12.30pmCollect in Store
Click & Collect

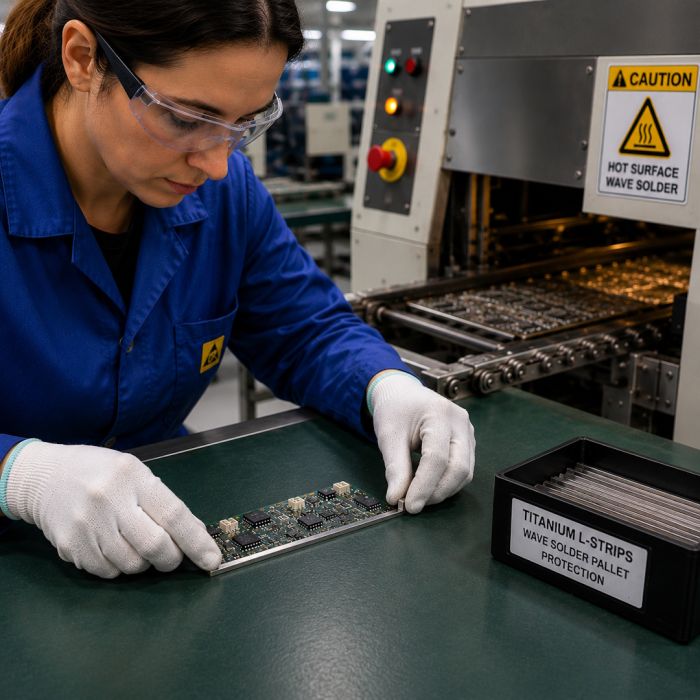

Commonly called wave ploughs or titanium strips these are manufactured to slide on to the front edge of a Printed Circuit Board. When a PCB is travelling on a wave solder machine conveyor it initially will pass through a preheat stage and then on to the solder bath subjecting the PCB material to high thermal demands. This can cause the board to sag and especially with large panels can cause flooding with molten solder and potential component damage and health and safety issues.
Titanium strips prevent PCB sag and warping
Protects components from solder damage
From 50mm to 310mm lengths available
(Custom lengths and titanium strip shapes available - contact Sales)
Commonly called wave ploughs or titanium strips, these are manufactured to slide onto the front edge of a Printed Circuit Board (PCB). When a PCB is travelling on a wave solder machine conveyor, it initially will pass through a preheat stage and then on to the solder bath subjecting the PCB material to high thermal demands. This can cause the board to sag, and especially with large panels, can cause flooding with molten solder and potential component damage and health and safety issues.
Advantages:
- Titanium strips prevent PCB sag and warping
- Protects components from solder damage
- From 50mm to 400mm lengths are available
- Custom lengths and titanium strip shapes are available - contact the Sales Team to enquire
| Brand | Somerset Solders |
|---|---|
| Customise | No |
| Collect in Store | Yes |
| MPN | T3 |
