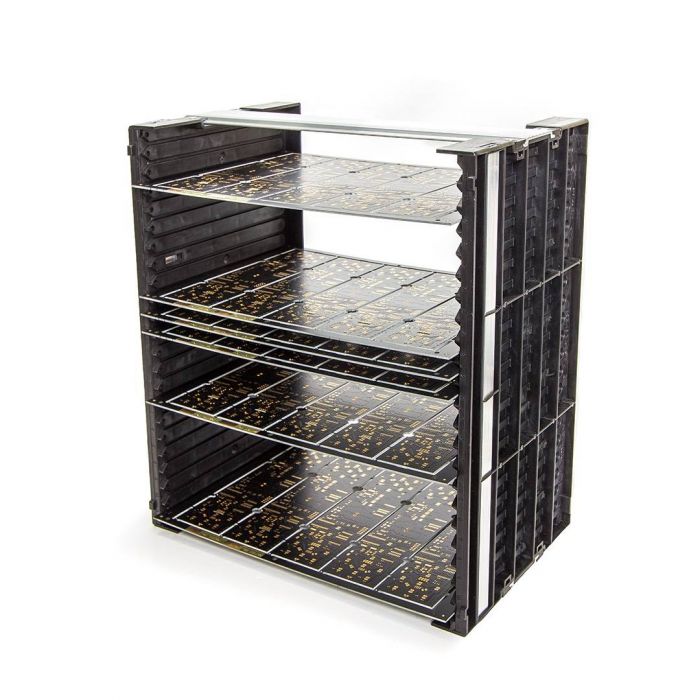

PCB Rack with 21 slots
A 21 slot PCB rack holding boards up to 535 x 400mm. For use in an EPA Electrostatic Protected Area ensuring that PCBs are stored correctly in PCB production areas. This storage rack can be used horizontally and vertically.
- A sturdy construction
- Add centre panels if required and extend the storage
- Racks large PCBs
End panel
Fami part no: F PV 6452 00 07
Overall dimensions: 350 x 30 x 190mm
Slot width: 2.5mm
Slot depth: 3.0mm
Slot pitch: 15.3mm
Material: Injection moulded conductive copolymer polypropylene
ESD conductive material value of 1 x 10(4) M ohms
Guide rails
Material: Aluminium
Fami part no: F PV 9160 00 00
Length: 552mm
Width: 53mm
ESD conductive material value of 1 x 10(4) M ohms
Fasteners
Fami part no: F PV 9010 00 07
Total parts for the F PV 9160 01 00
End panel: 2 off
Guide rail: 2 off
Fasteners: 1 set
Standard Delivery
Usual shipping within 2-5 daysNext Day
Service available. Cut-off by 12.30pmCollect in Store
Click & Collect
The Fami FPV 9160 01 00 is a two-sided slotted frame comprising of the Fami end panels FPV 6452 00 07 with two aluminium guide rails FPV 9160 00 00. These rails are 552mm long so allowing very long PCBs to be fitted in to the rack. The aluminium rails are reinforced for extra rigidity. The slot profiles in the end panels are 2.5mm wide and 3.0mm deep and on a 15.3 pitch. This rack has 21 PCB slots and is an overall size of 552 x 350 x 190mm. The largest PCB this accommodates is 535 x 400mm. Supplied with a set of fasteners for easy assembly.
Made from injection moulded conductive copolymer polypropylene
Suitable for temperatures up to 100°C
Integral backstops
Assembled racks fit into standard euro containers
ESD conductive material value of 1 x 10(4) M ohms
| Brand | iMilani PCB Storage |
|---|---|
| Customise | No |
| Colour | Black |
| Collect in Store | Yes |
| Specification |
|
| MPN | FPV91600100 |
