ESD Wrist Strap and Footwear Test Station

£162.00 £135.00
In Stock
SKU
ESD126
MPN: ESD126

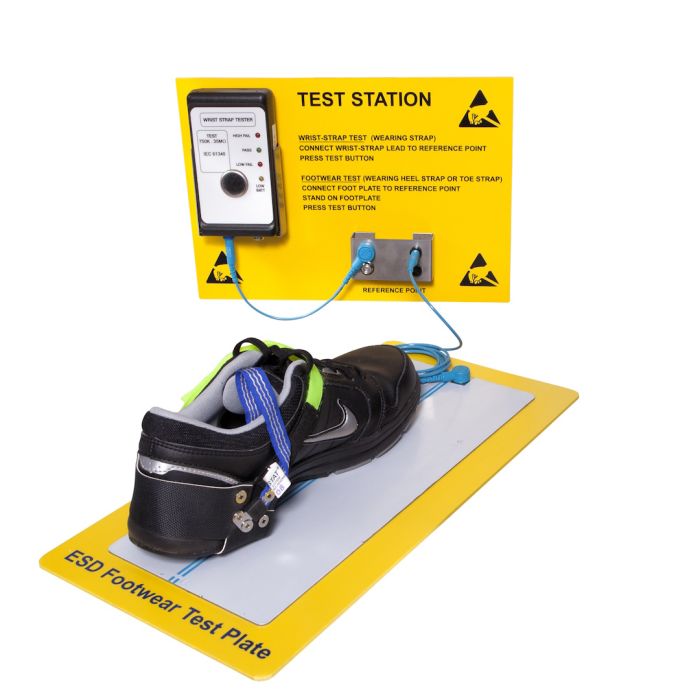

A highly visible wall mounted test station for ESD wrist straps, heel grounders and ESD shoe testing.

  • High visible wall mounted printed plate
  • Simple to use ESD test routine
  • Sturdy foot plate
  • Calibration certificate supplied. (Recalibration service available).

    Test station wall plate size: 300 x 210mm
    Footplate size: 400 x 200mm
    Power supply: 9V PP3 alkaline battery
    Test voltage: 9V
    Test range: 0.75 to 35 M ohm
    LED indication: Green (PASS) Red (FAIL)
    Supplied cords:
    150mm, Zero ohm, 10mm snap to jack
    1800mm, Zero ohm, 10mm snap to jack
    Complies with standard EN IEC 61340-4-3
    CE approved

ESD WRIST STRAP AND FOOTWEAR TEST STATION INSTRUCTIONS

Standard Delivery

Usual shipping within 2-5 days

Next Day

Service available. Cut-off by 12.30pm

Collect in Store

Click & Collect

An important part of a static control program is the regular testing of preventative items such as ESD wrist straps and grounding cords, heel straps and ESD footwear. This highly visible, easily mounted wall panel with resistance tester, combined with a footplate, gives an audible alarm and visible LED indication for a pass or fail by single push-button contact. Powered by a 9V battery and supplied with zero ohm cords.

Easy operation for testing straps, cords and shoes

Simple pass or fail indication


9V PP3 alkaline battery powered

For 10mm snap or 4mm jack plug cord testing

More Information
BrandSomerset ESD
CustomiseNo
Collect in StoreYes
MPNESD126
