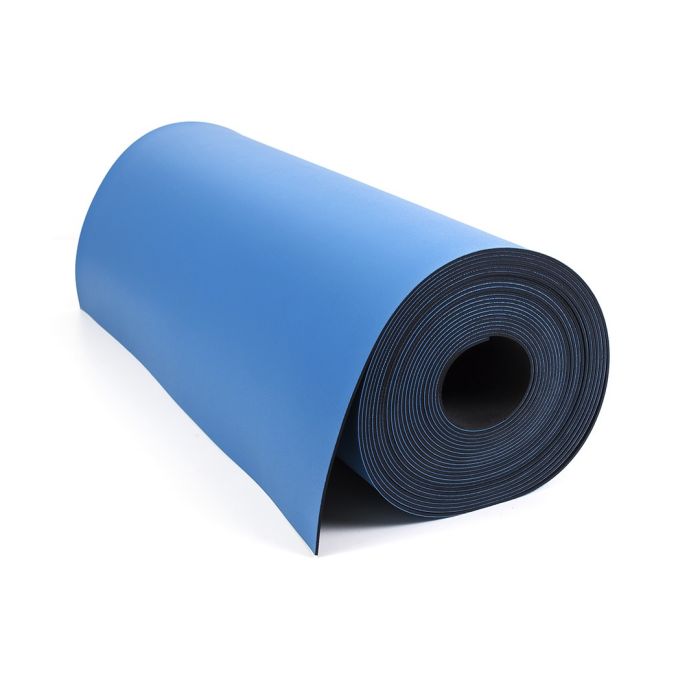

ESD Bench Matting with extra cushion layer full roll 1200mm
A 3mm thick 3-layer ESD bench matting material on a 1200 metre wdth that gives extra protection for delicate parts and added comfort for working.
- Great colour for your ESD bench
- Resistant to solder splashing and abrasion
- Supplied as a 1200mm width on a 10 metre roll
- Compliant to standard EN 61340-5-1
Matting Density: 1.4 +/- 0.02 g/cm3 (DIN 53479)
Matting Abrasion (5N load): 130mm3 (DIN 53516)
Matting Hardness: 78 Shore A (DIN 53505)
Matting Impression test: 0.1mm (DIN 51955)
Matting Light reflection: 19% - 29% (DIN 5036)
Matting usable temperature range: Maximum 60°C
Point to point resistance Rp Typical value: 10(7) ohms Test standard: EN61340-2-3
Resistance to groundable point Rg Typical value: 10(6) - 10(7) ohms
Test standard: EN61340-5-1
Heavy
A delivery surcharge may apply
When preparing ESD bench matting for static control areas the need may arise where matting sizes are different than the standard 900 x 600mm and 1200 x 600mm lengths. Buying a full roll gives the opportunity to cut and stud to your own requirement. The Royal Blue ESD bench matting is available in the standard 1200mm (4 ft) width (Custom cuts are also available so do contact us for a quotation).
3mm high quality smooth easy to clean finish
Matting is resistant to solder splashing and abrasion
Easy to cut and can be loose-laid or glued to the bench
10 metres total length
| Brand | Somerset ESD |
|---|---|
| Customise | No |
| Colour | Royal Blue |
| Collect in Store | No |
| MPN | EBM-FULLRB1200 |
