Simply the best two-arm portable extraction system around. Supplied with two installation kits with ESD conductive black flexible stay put arms.
- Easy to install - side of bench mounted or through benchtop
- Helps to remove potentially harmful solder fumes at the source
- Stay put arm for easy positioning
- Can be run as a single port but ideal for a two-user extractor
- NOT FOR WELDING FUMES EXTRACTION
THE BOFA V250 PRODUCT DATASHEET
V 250 extraction unit
Dimensions: (HxWxD) 380 x 260 x 260mm
Cabinet construction: Powder-coated mild steel
Airflow / Pressure: 180m(3) / 30mbar
Voltage: 230V
Noise level: < 55dBA (at typical operating speed)
Weight: 10kg
Duct size: 50mm, Duct Run: 5 metres
Pre Filter Fitted Part: A1030102
Media: Glass fibre paper
Construction: Pad
Efficiency: F7 (96% @ 2 microns)
Combined HEPA* / Gas Fitter Part: A1030099
(* High-Efficiency Particle Air Filter)
Media: H13 Glass fibre paper
Construction: Maxi Pleat with webbing spacers
Efficiency: H13 (99.997% @ 0.3 microns)
Gas: Impregnated Activated Carbon
50mm Stay Put Arms with nozzle (A1020047)
Length: 790mm
Nozzle: 90° slant, 40mm diameter
Construction: Black carbon-loaded compressed polystyrene (ESD)
Standard Delivery
Usual shipping within 2-5 daysNext Day
Service available. Cut-off by 12.30pmCollect in Store

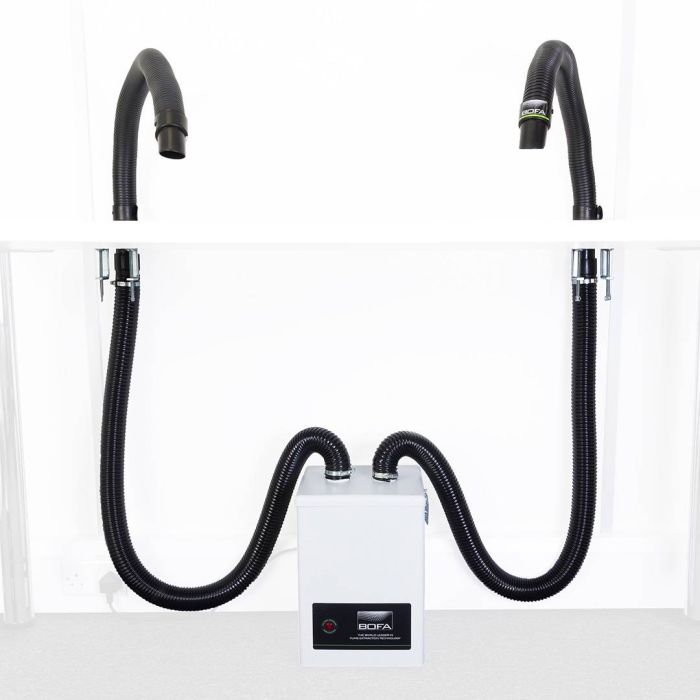

Click & CollectThe BOFA V 250 is a two-arm system that can be used both as a single arm or two arm fume extraction set-up. Offering portability with bench brackets for arm positioning or alternatively using the unique BOFA flip-top flush seal mounting plate for permanent bench-top fixing. The V 250 unit comes supplied complete with extraction pipes, brackets, flip-top seal plates, and flexible arms for both pipe outlets. The V 250 is supplied with a Pre-filter and HEPA / Gas combination filter designed to remove 99.997% of particles at 0.3 micron in size
Protects two operators working closely from solder fumes
Highly efficient filtration to 99.997% returning clean air back to the workplace
Easy change filters and Filter blocked indicator
50mm Easy Stay Put extraction arms with nozzle (part no. A1020047) supplied
